This was a huge day at the hangar.

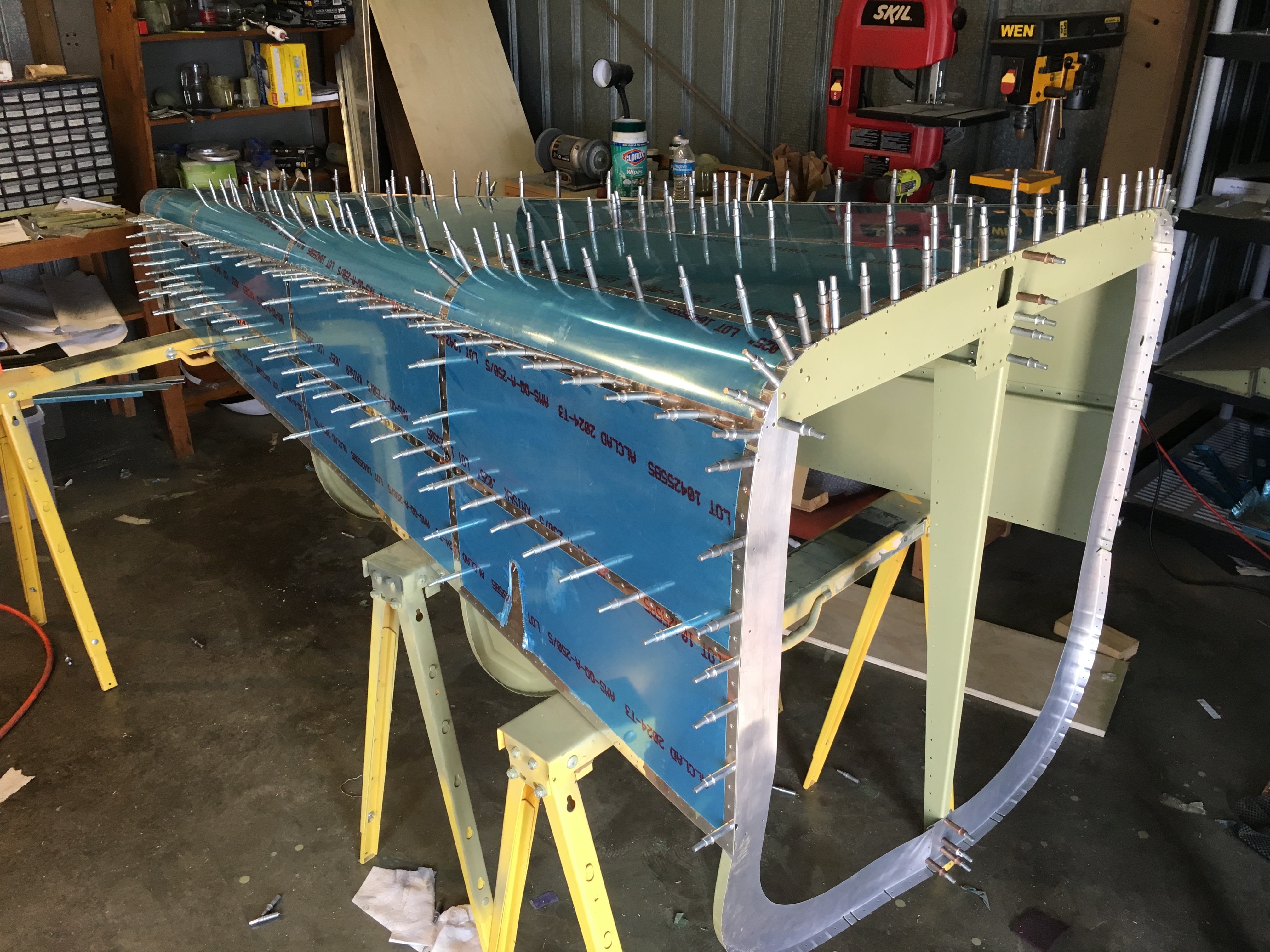

The first thing I did was dimple the #8 fastener hole near the rudder cable egress slot. I can see how a bunch of builders would miss this hole. After the dimpling, I got to work clecoing the aft fuselage together.
IMG_0298

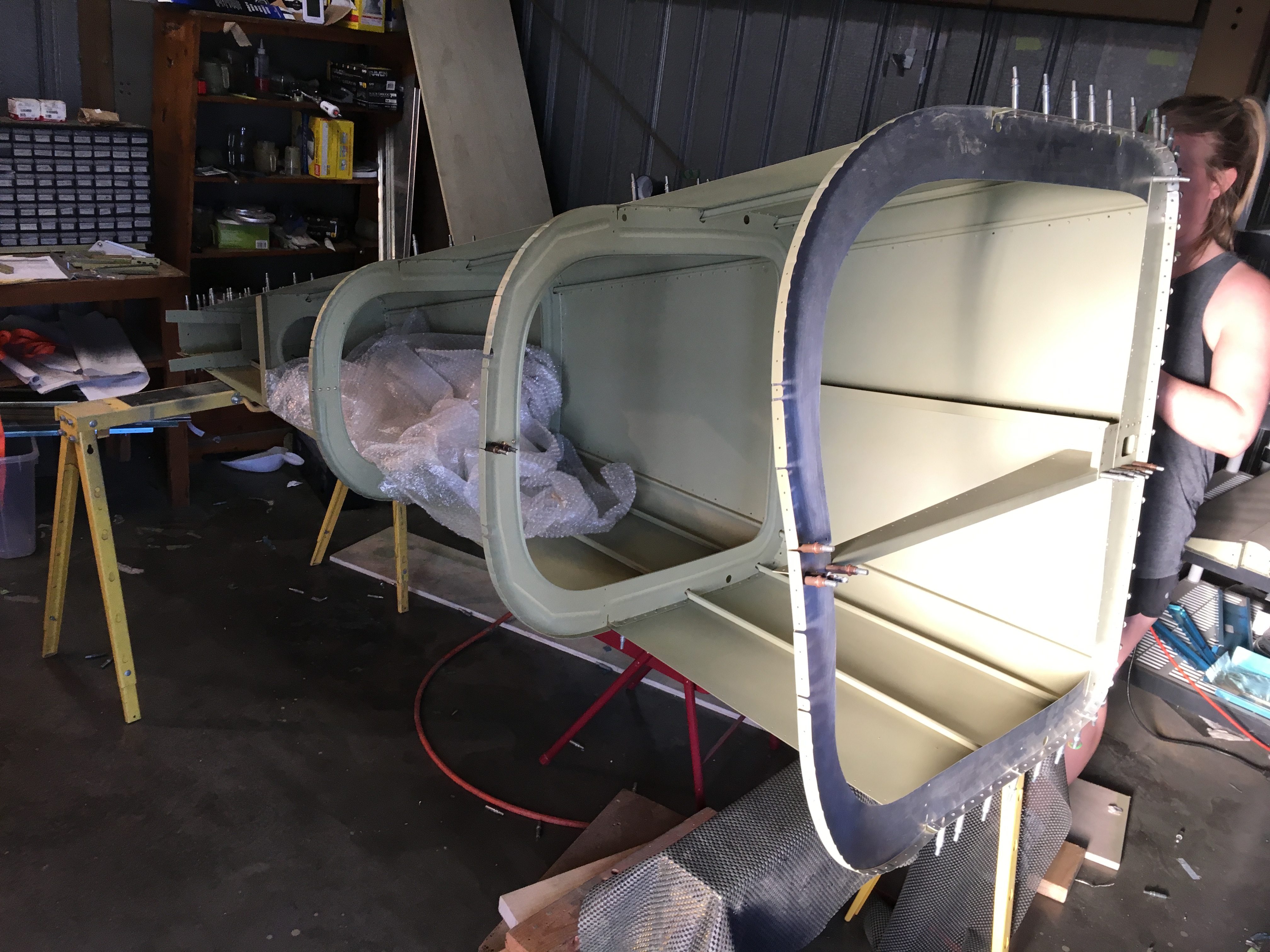

We did most of the riveting with the fuselage inverted. You can see in the picture below bubble wrap was used to protect the skin in case I dropped the bucking bar.
IMG_0305

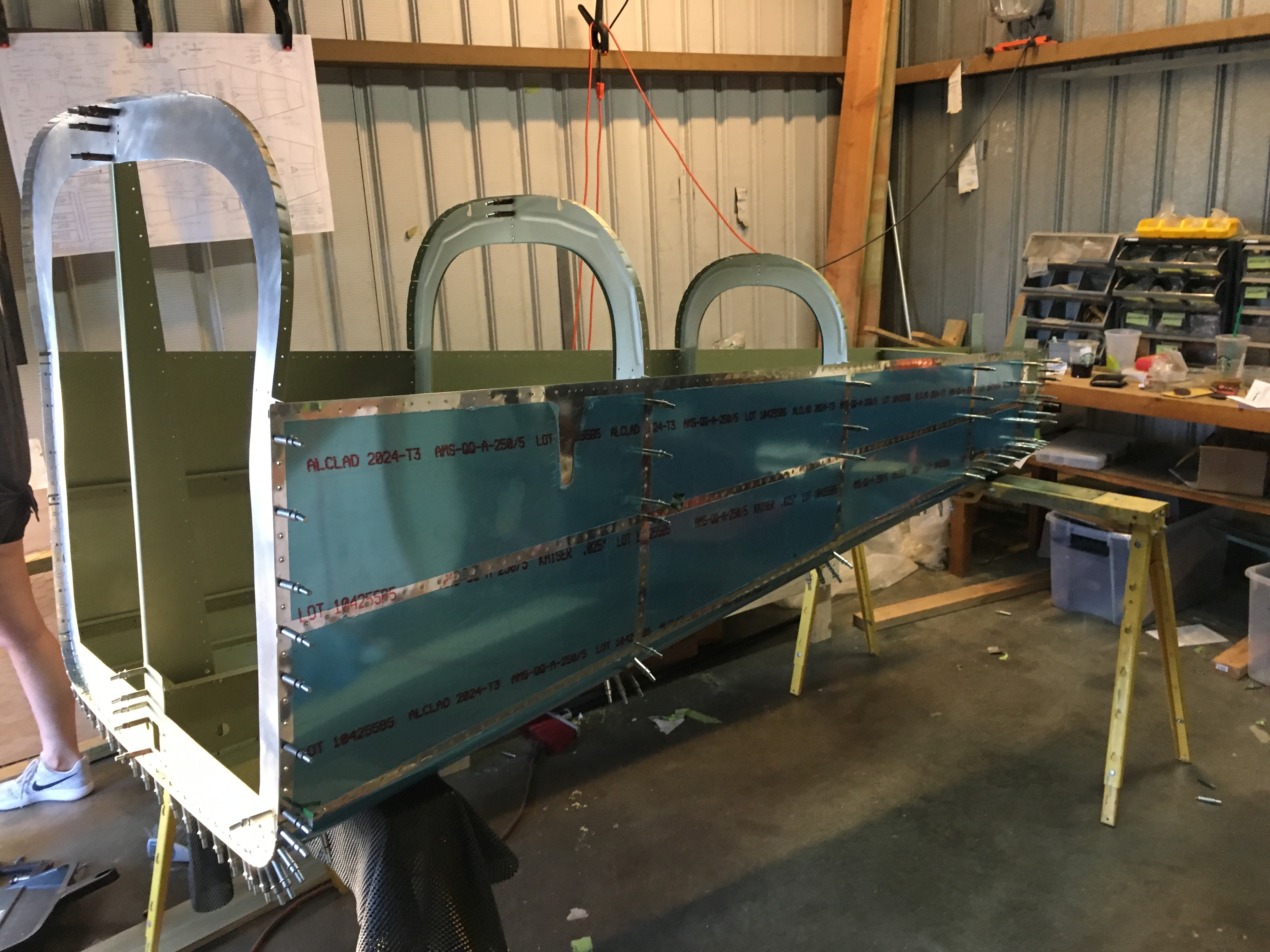

After a long day in the hangar, we got nearly all the rivets along the bottom and left side of the fuselage installed.
IMG_0329

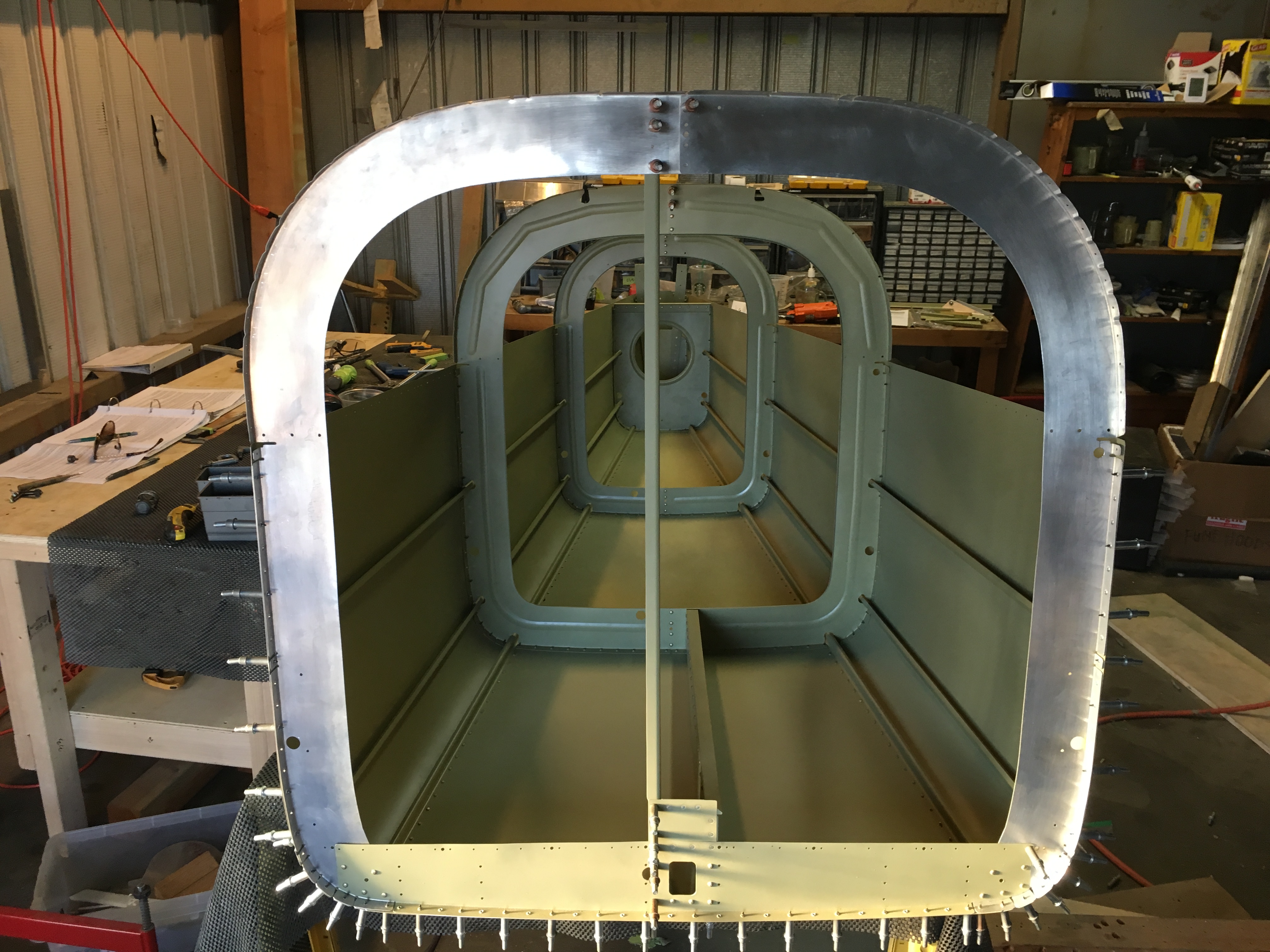

The interior looks pretty sweet!
IMG_0338
